Size: Internal diameter (ID) in mm. Sizes 2-9
(Fig 1)
Length: The distance from the tip of the tube is
marked along the tube’s length. Tubes are produced longer than
required, and can be cut to the appropriate length (Fig 2)
Implantation testing: The letters IT or Z79-IT
denote that the device material has been tested in rabbit muscle, to
ensure tissue compatibility (Fig 3)
Radio-opaque line: To aid detection on x-rays

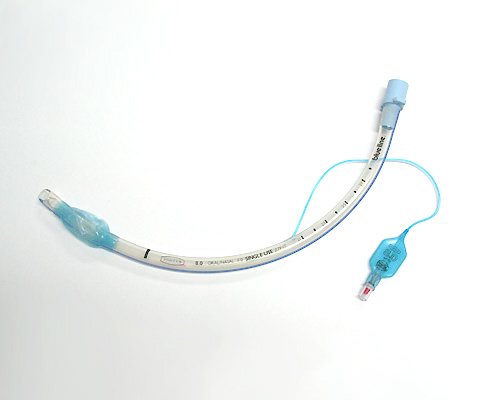

Tracheal tube

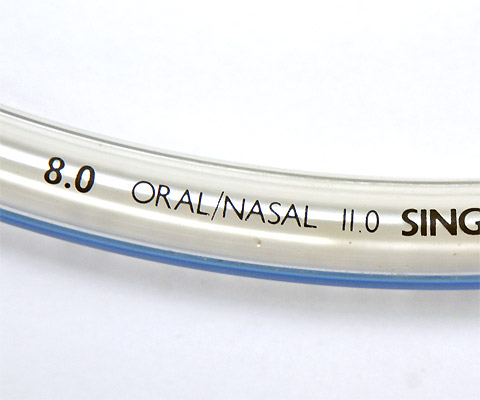

Fig 1 Tracheal tube detail of size (8 mm)

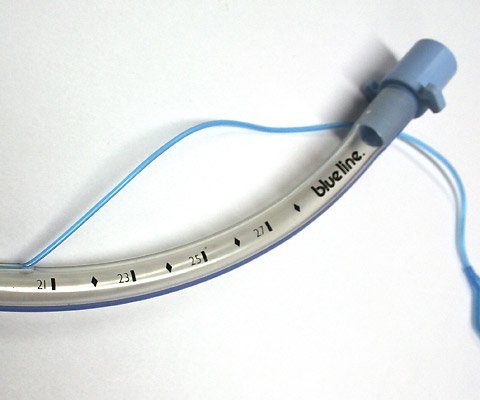

Fig 2 Tracheal tube markings of the tube's length

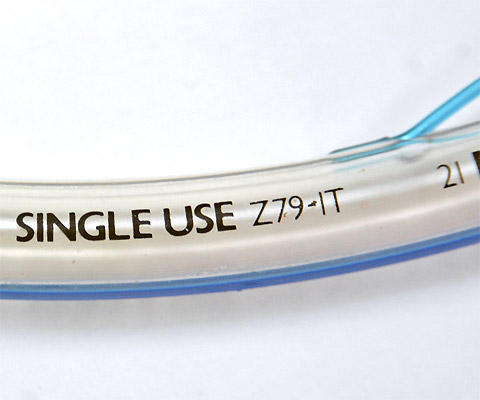

Fig 3 Tracheal tube detail of implantation testing
