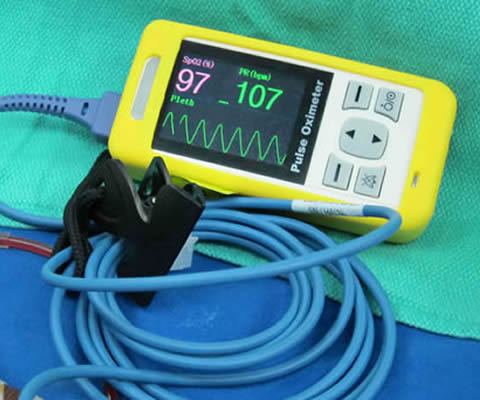

A pulse oximeter has two parts:

• The probe (Fig 1)
• The monitor (Fig 2)

The patient must have a pulse for the probe to pick up a signal. The pulse wave must be displayed on the monitor for the reading to be reliable.
